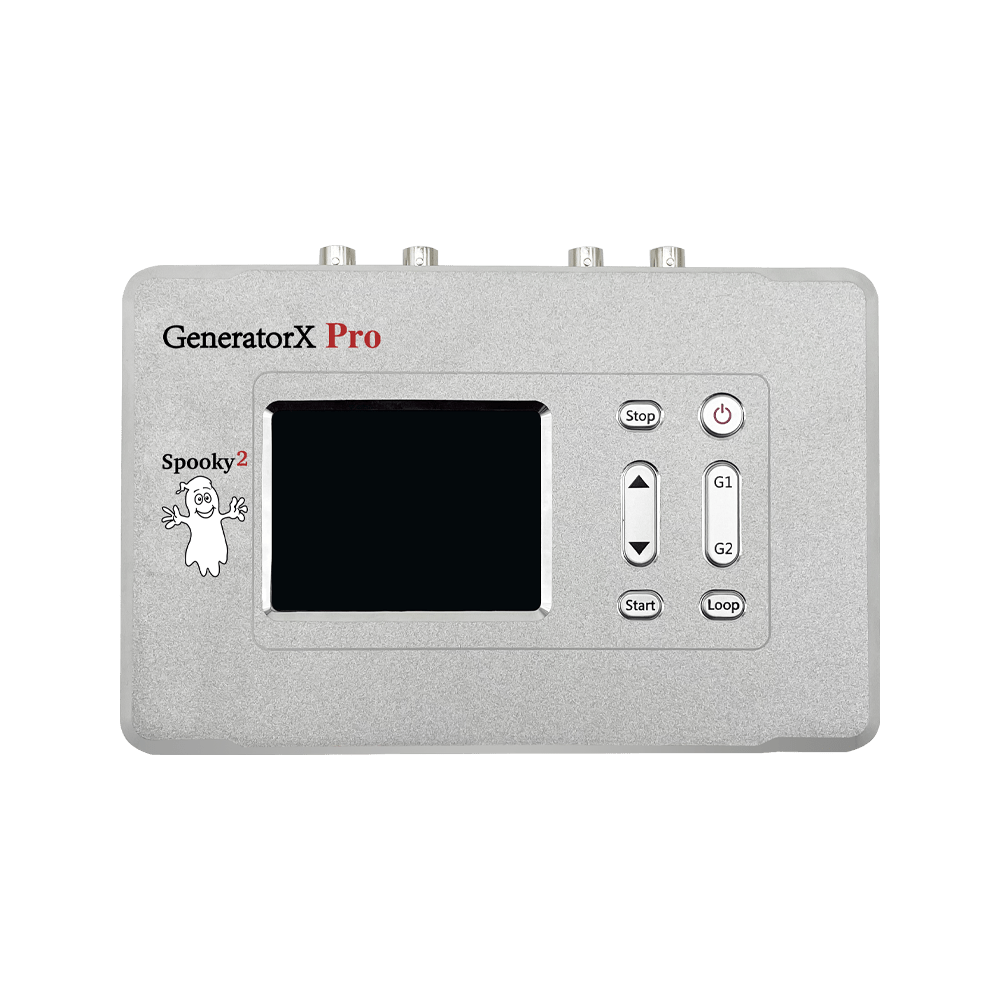

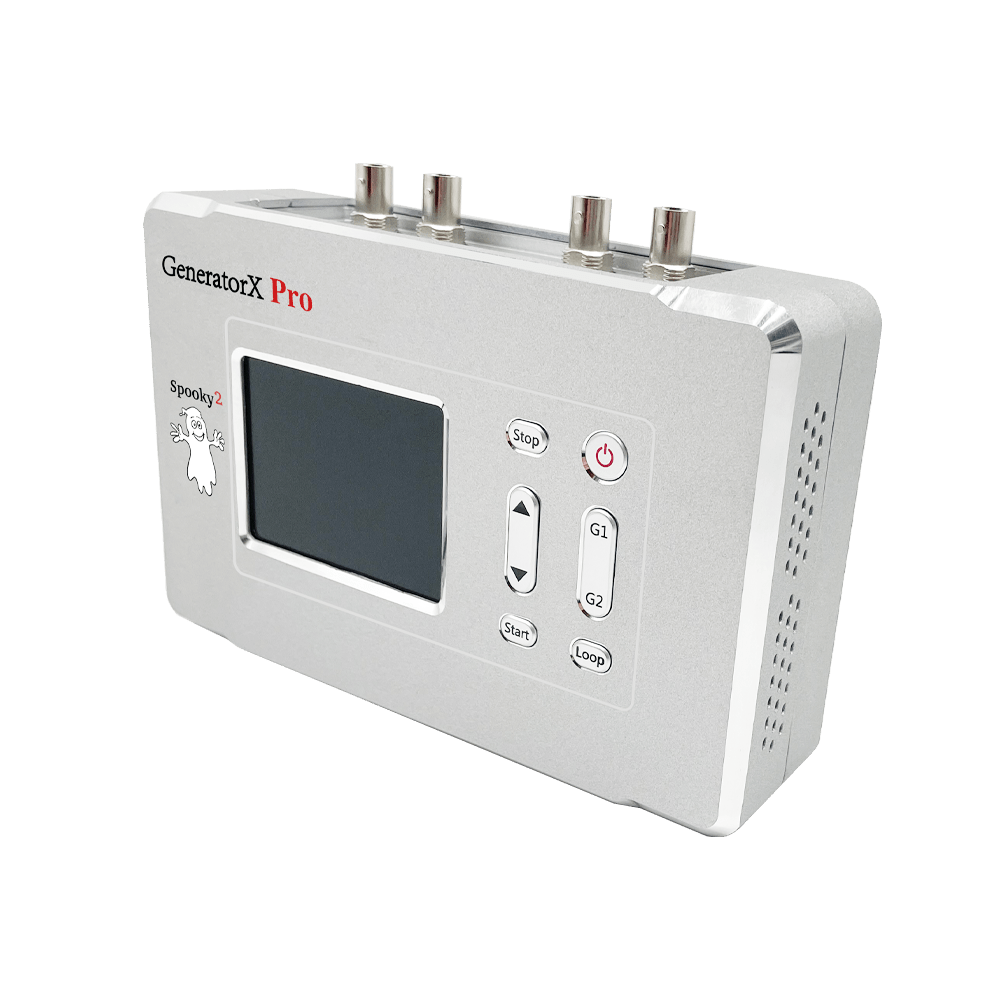

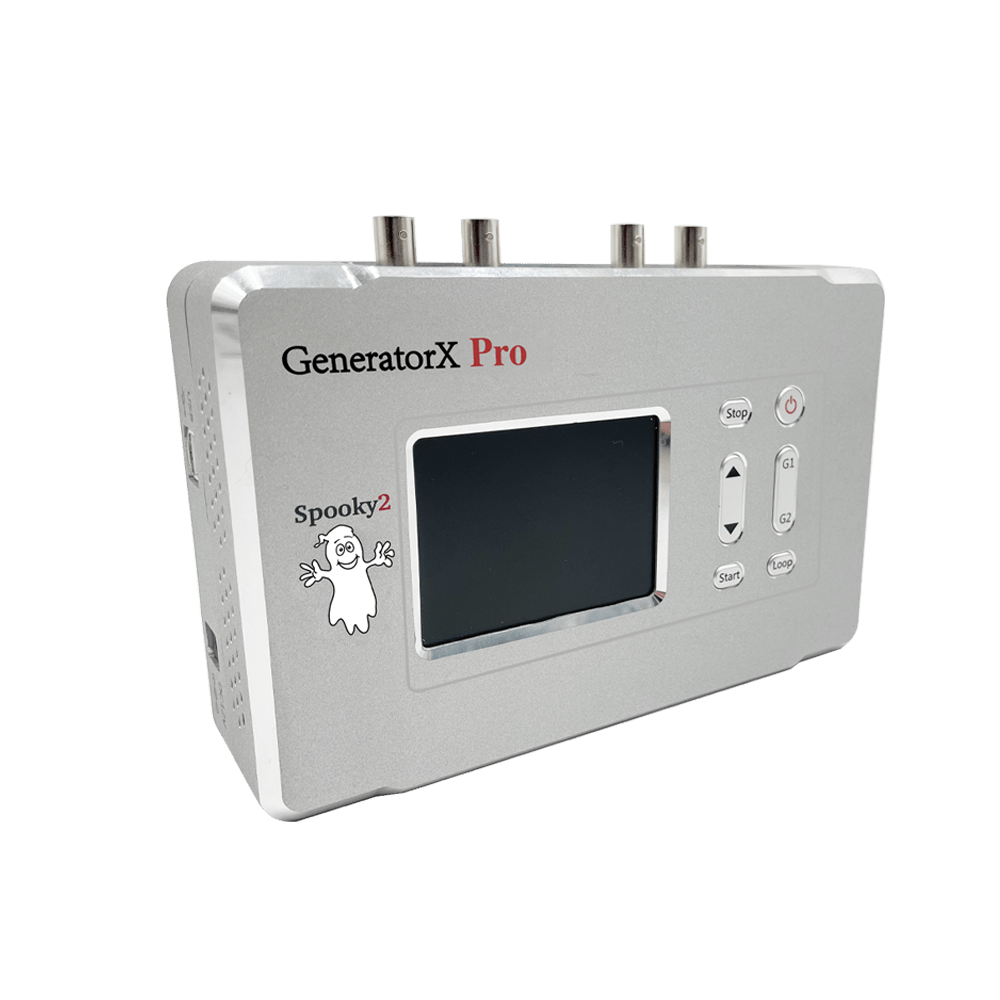

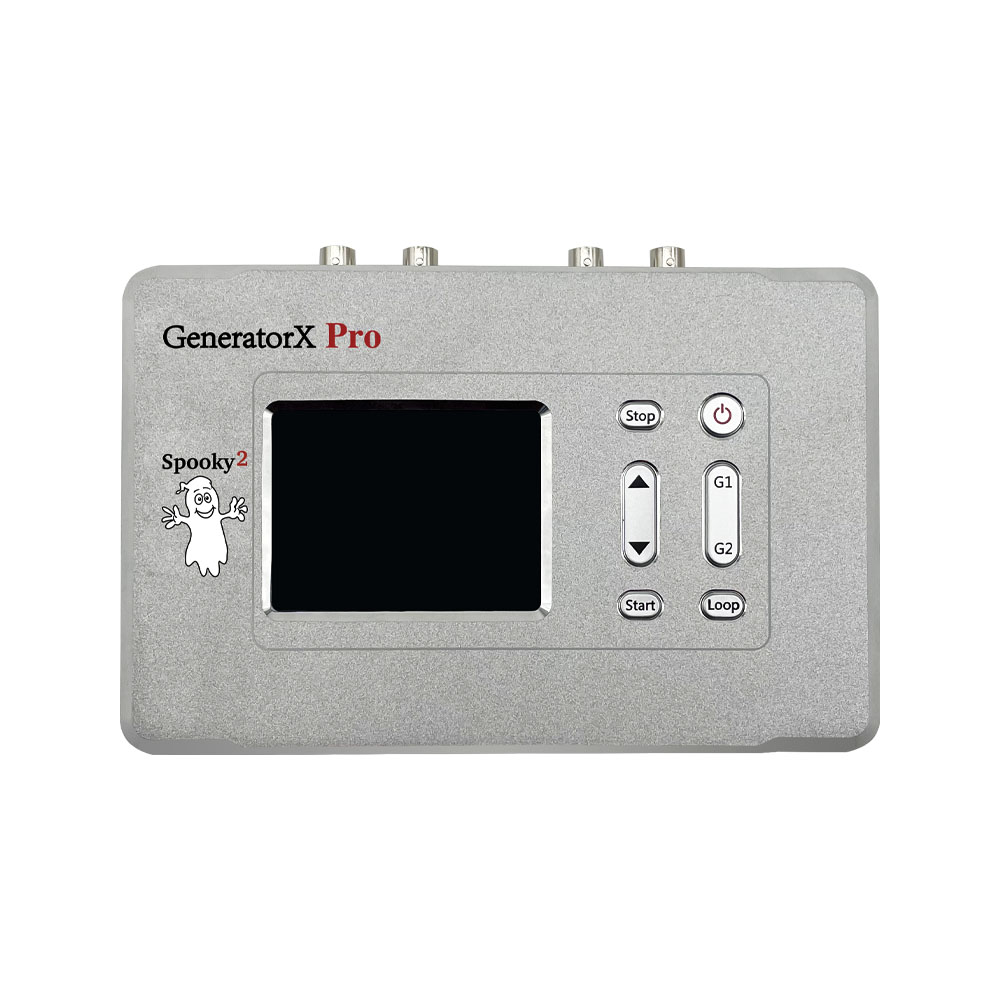

Spooky2 GeneratorX Pro

Spooky2 GeneratorX Pro

Each GeneratorX Pro contains 2 function generators, each with 2 outputs and a full biofeedback function. GX Pro can run at 40 MHz with any waveform, and can also load up to 30 programs from Spooky2 software to run standalone without a computer.

Hardware Included

1 x Spooky2 GeneratorX Pro
1 x 12V Power Supply
1 x USB Cable

Features

• 2 built-in function generators, each with 2 outputs.
• Fast full biofeedback function – a biofeedback scan which takes an hour with Spooky2 Pulse now takes just about 6 minutes. No more sitting (or lying) down forever, waiting for a biofeedback scan to complete.
• 40 MHz maximum output with any waveform.
• Standalone capability with up to 30 loaded programs.
• AM modulation between any waveform.
• Up to 5 kHz gating (at any duty cycle).

If you are a NEW user, please notice that the generator can not work alone. The boost and other transmission modes are needed to work together. Don’t worry, we prepared a kit for you to save your time. You can get it here.

Specifications

Power Adapter Input: 100-240V，50/60Hz
Power Adapter Output: 12V 2A
Power Adapter DC plug specifications: 10*5.5*2.1mm

Configuration: 2 x Independent DDS generators
Output Short Circuit Protection: Yes
Offline (Stand-alone) Operation: Yes
USB speed: 115200 bps
Maximum Offline Program Count: 30
Maximum frequencies per program: 200
Microprocessors: 2 x 128kB ARM CPU with Firmware upgrade.
1 x 64 MHz advanced STM32 core CPU for data collection.
Output waveform: 10 bits x 1024 bits
Sampling Rate: 300 MSPS
Display: 3.2” TFT True Color LCD
Display Resolution: 320 x 240 bit
Maximum Amplitude: 20vpp
Amplitude Resolution: 0.01v
Output Impedance: 50 Ω
Frequency Range: 0 – 40 MHz for all waveforms
Frequency Resolution: GX Pro has 8 decimal places across the entire frequency range.
Modulation Method: AM (Out 2 modulates Out 1)
Measurement Detection: Current and Phase Angle
Measurement Method: High-side Detection
Measurement Frequency Range: 100 Hz – 40 MHz
Measurement Resolution: 16 bits
Current detection resolution: 3.4uA
Phase angle detection resolution: 0.0015 degrees
Output Frequency precision: 50ppm
Input: 12V 2A 24W
Output: <= 200mA <= 20V

Note:

• You need to load the programs from the computer to the GeneratorX Pro and then use your GX Pro stand-alone. For more details, please check the blog below:
  https://www.spooky2-mall.com/blog/how-to-load-programs-into-generatorx/
• The Spooky2 software requires Windows.
  Windows XP, Windows Vista, Windows 7, Windows 8/8.1, and Windows 10 can be used for Spooky2.
• We will arrange the appropriate power supply based on the country of the order.

Watch this video to learn more about GX Pro:
